How Red Light Therapy Masks Smooth Wrinkles: The Science of Collagen Density & Fibroblast Activation

Position 0 Summary Red light therapy masks smooth wrinkles by delivering 630–660 nm red and 810–850 nm near-infrared photons to dermal fibroblasts, accelerating mitochondrial ATP production, upregulating pro-collagen gene expression, and increasing intradermal collagen density — measured gains of roughly 30–45% in controlled trials over an 8-to-12-week treatment cycle (Wunsch 2014: +45% ultrasound collagen density; Barolet 2009: +31% type-I procollagen, −18% MMP-1).

Wrinkles are not merely surface folds; they are structural breakdowns of the dermal extracellular matrix (ECM). As cellular mitochondrial activity declines with age, dermal fibroblasts reduce their synthesis of Type I and Type III collagen, causing skin thinning, loss of elasticity, and deep periorbital furrows. Photobiomodulation via wearable red light therapy masks directly counters this structural decline by delivering targeted light energy to reactivate dormant fibroblasts and increase intradermal collagen density.

Cellular Mechanisms: How Light Photons Trigger Fibroblasts & Collagen Density
- Mitochondrial Cytochrome c Oxidase & ATP Acceleration
- Type I and Type III Collagen Matrix Remodeling
Hardware Precision: Why Optical Irradiance & Spectrum Dictate Anti-Aging Results
- The Thermal Threshold: Preventing Heat-Induced MMP-1 Collagen Breakdown
Frequently Asked Questions (FAQ)
Partner with an ISO 13485 Certified Light Therapy Manufacturer

1. Cellular Mechanisms: How Light Photons Trigger Fibroblasts & Collagen Density

Dermal aging is fundamentally driven by a reduction in cellular bioenergetics. When fibroblast cells lack sufficient adenosine triphosphate (ATP), their capacity to transcribe collagen genes and secrete structural proteins plummets, resulting in visible lines and decreased tissue recoil.

Photobiomodulation reactivates aging fibroblasts by targeting mitochondrial Cytochrome c Oxidase (CCO), boosting intracellular ATP synthesis, and triggering TGF-β signaling to upregulate collagen production without thermal damage.

Mitochondrial Cytochrome c Oxidase & ATP Acceleration

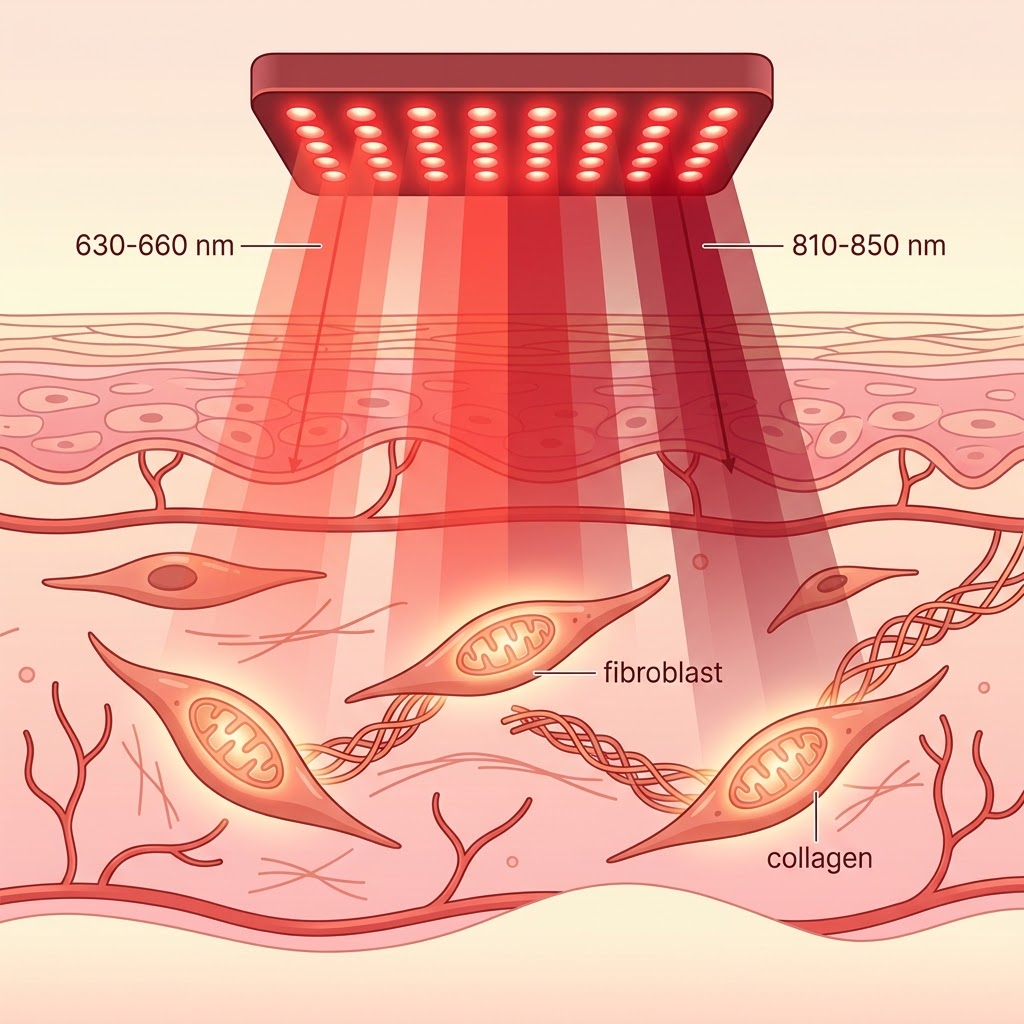

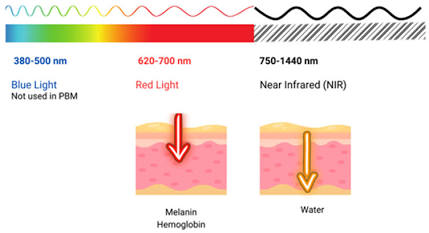

When photons in the $630 - 660 nm$ red and $810 - 850 nm$ near-infrared bands penetrate the papillary and reticular dermis, they are absorbed by Cytochrome c Oxidase (Unit IV of the mitochondrial respiratory chain). This photon absorption displaces inhibitory Nitric Oxide (NO), unlocking the electron transport chain and sparking an ATP surge. This bioenergetic boost supplies the metabolic fuel necessary for fibroblasts to repair extracellular matrix damage.

Type I and Type III Collagen Matrix Remodeling

With elevated ATP levels, fibroblasts initiate neocollagenesis. Transforming Growth Factor-beta (TGF- $β$ ) pathways are upregulated, signaling the cell nucleus to synthesize precursor pro-collagen molecules. Over 8 to 12 weeks, these molecules cross-link into dense Type I (structural strength) and Type III (elastic compliance) collagen fibril networks, physically thickening the dermis and lifting fine lines from beneath.

Clinical benchmark: In Barolet et al. (2009), 660 nm pulsed LED raised type-I procollagen by 31% and cut MMP-1 by 18% in a tissue-engineered skin model; >90% of treated individuals showed reduced wrinkle depth and roughness by profilometry. In Wunsch & Matuschka (2014), ultrasonographic intradermal collagen density rose ~45% after 30 sessions over 15 weeks.

2. Hardware Precision: Why Optical Irradiance & Spectrum Dictate Anti-Aging Results

Not all wearable LED masks are created equal. Achieving clinical wrinkle reduction requires precise control over optical physics—specifically spectral purity, power density, and thermal regulation.

Commercial-grade anti-aging masks must deliver calibrated optical irradiance (30–50 mW/cm²) across narrow-band wavelengths (630nm/660nm and 810–850nm ±3–5nm) to achieve therapeutic fluence without inducing thermal degradation.

Optical & Technical Parameter	Low-Cost Consumer Mask ($20–$60)	Certified OEM / Medical-Grade Silicone Mask ($150+)
Peak Wavelength Precision	$\pm 20 to \pm 30 nm$ (Unsorted chips)	$\pm 3 to \pm 5 nm$ (Precision-binned LED wafer)
Dermal Irradiance Output	$< 5 mW/c m^{2}$ (Sub-therapeutic)	$30 - 50 mW/c m^{2}$ (Clinical PBM window)
Session Energy Fluence (10 Min)	$< 3 J/c m^{2}$ (Fails to trigger TGF- $β$ )	$18 - 30 J/c m^{2}$ (Optimal neocollagenesis)
Thermal Management	Unregulated (Heat stress raises MMP-1)	Constant-Current PCB ( $< 4 0^{\circ} C$ thermal cap)
Optical Distribution	Flat rigid gaps (Inconsistent energy)	3D Ergonomic Flexible Silicone (Uniform contact)
Quality Management Standard	Uncertified commercial assembly	ISO 13485 Medical Device Cleanroom

The Thermal Threshold: Preventing Heat-Induced MMP-1 Collagen Breakdown

Excessive heat during light therapy is counterproductive for anti-aging. Heat stress raises Matrix Metalloproteinase-1 (MMP-1), an enzyme that degrades existing collagen fibers; in fibroblast cultures, elevated temperatures (from ~41 °C) measurably increase degradation of newly synthesized collagen, and heat-shock studies confirm temperature-dependent MMP-1/MMP-3 induction. High-quality silicone masks utilize constant-current power regulation and copper-substrate heat sinks to maintain a comfortable $38 - 4 0^{\circ} C$ operating range, keeping photonic delivery well below the heat-stress zone that drives collagenase activity.

3. Frequently Asked Questions (FAQ)

Q1: How long does it take for red light therapy to increase collagen density and smooth facial wrinkles? A: Clinical profilometry shows that microvascular improvement and skin hydration begin within 1 to 2 weeks. However, true neocollagenesis and measurable increases in intradermal collagen density require 8 to 12 weeks of consistent treatment (10–15 minutes per session, 3 to 4 times weekly) as new collagen fibers cross-link.

Q2: Can red light therapy masks replace topical retinoids or collagen serums? A: Red light therapy works synergistically with topical skincare. While retinoids accelerate epidermal cell turnover from the top down, red light therapy activates dermal fibroblasts from the bottom up. Combining both modalities yields superior anti-aging outcomes, provided topical retinoids are applied after light therapy sessions to avoid photosensitivity.

Q3: What regulatory clearances ensure an anti-aging light mask actually works? A: Look for devices cleared under FDA 510(k) (Class II medical device under 21 CFR 878.4810 for OTC skin rejuvenation), manufactured in an ISO 13485 certified facility, and tested under IEC 62471 for photobiological eye safety and ISO 10993 for dermal biocompatibility.

4. Partner with an ISO 13485 Certified Light Therapy Manufacturer

Shenzhen Rainbow Technology Co., Ltd. (Rainbowdo) is an ISO 13485-certified OEM/ODM manufacturer specializing in medical-grade wearable LED beauty devices engineered for maximum collagen building and anti-aging performance.

Custom Optical Engineering: $630 nm /660 nm /810 - 850 nm$ multi-chip arrays with $\pm 3 - 5 nm$ spectral binning.
Full Turnkey Regulatory Support: Access comprehensive FDA 510(k) clearance files, CE MDR documentation, and IEC 62471 safety reports.
Medical-Grade Cleanroom Production: Platinum-cured 3D silicone molding and automated SMT cleanroom manufacturing.

👉 Request Factory Regulatory Compliance Package & OEM Samples | ✉️ Direct Email: rainbow25@rainbowdo.com | 🌐 rainbowdo.com

Academic & Industrial References

Avci, P., et al. (2013). Low-Level Laser (Light) Therapy (LLLT) in Skin: Stimulating, Healing, Restoring. Seminars in Cutaneous Medicine and Surgery, 32(1), 41–52. PMID: 24049929.
Wunsch, A., & Matuschka, K. (2014). A Controlled Trial to Determine the Efficacy of Red and Near-Infrared Light Treatment in Skin Roughness and Intradermal Collagen Density Increase. Photomedicine and Laser Surgery, 32(2), 93–100. PMID: 24286286.
Barolet, D., Roberge, C. J., Auger, F. A., Boucher, A., & Germain, L. (2009). Regulation of Skin Collagen Metabolism In Vitro Using a Pulsed 660 nm LED Light Source: Clinical Correlation with a Single-Blinded Study. Journal of Investigative Dermatology, 129(12), 2751–2759. DOI: 10.1038/jid.2009.186. PMID: 19587693.
U.S. Food and Drug Administration. (2023). Photobiomodulation (PBM) Devices — Premarket Notification [510(k)] Submissions (Draft Guidance, Docket FDA-2022-D-3116).
Huang, Y.-Y., Chen, A. C.-H., Carroll, J. D., & Hamblin, M. R. (2009). Biphasic dose response in low level light therapy. Dose-Response, 7(4), 358–383.

This article is for informational purposes only and does not constitute medical advice. Red light therapy devices discussed herein are not cleared by the FDA to diagnose, treat, cure, or prevent any disease.
